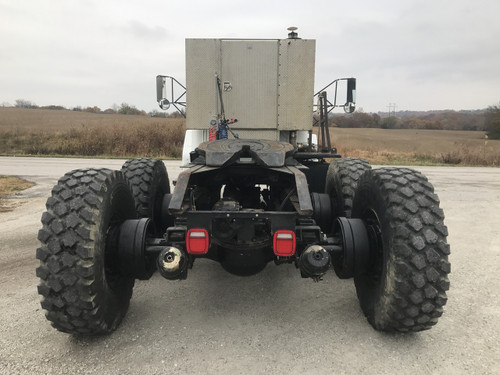

M812 Military 6X6 5 Ton 6X6 Semi Truck SOLD

All M-809 trucks, including the M-812, carried a six-cylinder Cummins NHC-250 engine that ran on diesel fuel. The strength of the engine was rated at 250 horsepower with the engine running at 2,100 rpm. The unique aspect of the engine that made it stand out from other five-ton trucks was the placement of the air intake. The piping was installed on the driver's side of the truck --- not to be confused with the exhaust which was on the passenger side. The transmission on all M-809 series trucks, including the M-812, was a manual five-speed transmission which also included a two-speed transfer case.

Being designed to move armament and equipment, the M-818 was a beast in towing. The load allowance following manufacturer limits was 37,500 lbs. The payload on the truck itself allowed 15,000 lbs. The braking system used a combination of air and hydraulics to power the stopping capability of the vehicle.

The M-809 series trucks came with three different designs of a wheelbase. The M-812 used a short version, measuring 167 inches. The truck itself weighed in at approximately 20,300 lbs. The cabin structure was similar to the M-39 and M-35 smaller trucks, mainly providing a box style driver and passenger sitting area. However the hood and front frame body was much longer than the 2.5-ton trucks in comparison since it needed to house the larger Cummins engine. The vehicle was 97.5 inches wide and it had of a height of 85.5 inches from ground to the steering wheel top. Wheel clearance was 10.5 inches off the ground, assuming additional materials underneath the carriage.
